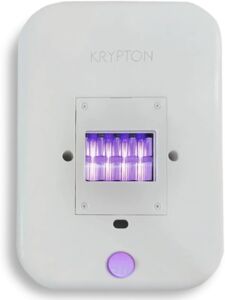

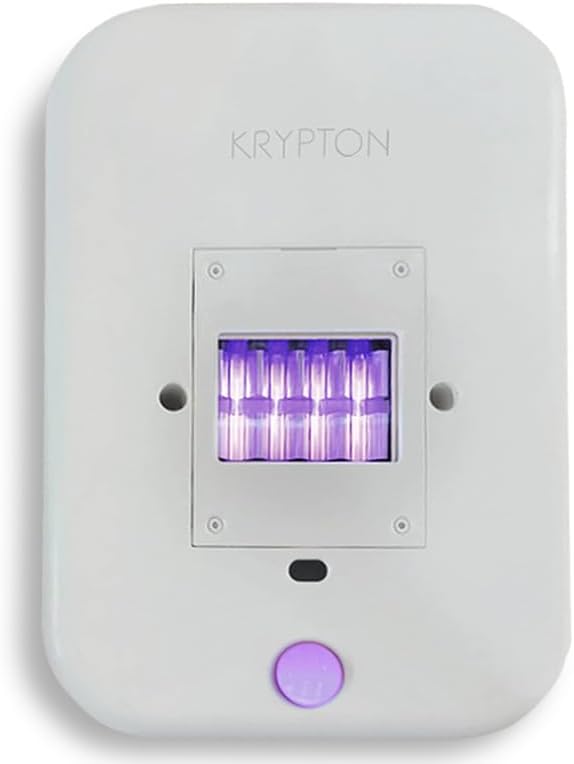

Krypton-36

Far UV 222nm Upper-Room or Ceiling-Mount Disinfection Light

The Krypton-36 disinfection lights are ideal for rooms with high ceilings that range from 11 to 36 feet high. Far UV (222nm) Krypton-36 disinfection light can be used within almost any budget to increase the safety of occupants in any environment. Since it is unknown if the immune system of any occupant of space will be protective against viral infection, the goal is to reduce the ambient viral load in the space as much as possible. The Krypton-36 disinfection light is a practical, safe, and effective disinfection method in sanitizing air and surfaces while space is occupied. Far UV light (at 222nm) is a safe UV wavelength for human exposure. Please click here to learn more about the Far UV 222nm technology or refer to our FAQ page for more information.

Features and Benefits

  • Designed for 11-36 ft ceilings
  • Achieve up to 3 log+ (99.9%) disinfection
  • Air and surface disinfection coverage of up to 1,000 sqft per fixture
  • Designed to meet and not exceed IEC/EN 62471 and ACGIH UV exposure Threshold Limit Values (TLV) for human exposure
  • Delivered dosage is not impacted by ambient temperature
  • No degradation in output over the life of the lamp
  • Environmentally friendly/Mercury-free
  • Instant On/Off
  • Company EPA Registered Establishment No. 96253-MO-1
  • Manufactured in ISO 9001 Certified Facility
  • Designed and Assembled in the USA
  • Compatible for downlighting or horizontal Upper Room disinfection
  • CDC, ASHRAE, and OSHA all recognize upper-room germicidal UV as an evidence-based disinfection technology. Visit CDC for more information on upper-room (UVGI): https://www.cdc.gov/coronavirus/2019-ncov/community/ventilation/UVGI.html

Specifications

Operating Voltage: 24 VDC
Power: 15W
Expected Operating Life: Up to 15 years (depending on operating parameters)
Optical Output: 222nm Wavelength (Far UV)

Dimensions

  • Length: 11.0” (279mm)
  • Width: 7.0” (177mm)
  • Height: 2.152” (54.6mm)

Included Accessories

  • 100-277VAC 50/60 Hz to 24VDC 60W transformer
  • Through-hole mount to any surface
  • 40 ft., 2-conductor shielded cable with ground wire
  • Installation manual

Applications

  • Medical and dental facilities
  • Government and defense facilities
  • Commercial offices, elevators, and stairwells
  • Public facilities (airports, city halls, museums, theaters, amusement parks, bathrooms)
  • Transportation (airplanes, buses, cruise ships, trains, subways, and ferries)
  • Elderly care facilities
  • Daycare centers and preschools
  • Grocery and convenience stores
  • Hotels, resorts, and casinos
  • Restaurants/Retail
  • Universities and schools
  • Athletic facilities (gyms, stadiums, locker rooms, and equipment)
  • Residential, Commercial, and Industrial facilities
  • Food preparation and delivery facilities
  • Extending food shelf life
  • Shipping and logistics
